LM Hashes¶

The lm module is used after LM password recovery to:

Map recovered LM passwords back to user accounts (map)
Generate password capitalisation candidates for recovered Domain Administrator passwords (generate)

-h
usage: main.py lm [-h] {map,generate} ...

LM password processing utilities used to reconstruct recovered LM passwords,
map them to user accounts, and generate candidate password variants for
privileged accounts.

positional arguments:
  {map,generate}
    map           Map recovered LM passwords to user accounts
    generate      Generate LM Domain Admin candidates

options:
  -h, --help      show this help message and exit

Examples:

    password-audit lm map \
        -N company.ntds \
        -P hashcat.potfile \
        -R lm-results.txt

    password-audit lm generate \
        -L ntds-organiser/mapped-lm-passwords.txt

Map¶

$ password-audit lm map -h
usage: main.py lm map [-h] -N NTDS -P POTFILE -R LM_RESULTS [-O OUTPUT_DIR]

Reconstruct recovered LM passwords using Hashcat show results
and map them back to user accounts within the NTDS dataset.

options:
  -h, --help            show this help message and exit

required arguments:
  -N, --ntds NTDS       SecretsDump NTDS file
  -P, --potfile POTFILE
                        Hashcat potfile containing recovered passwords
  -R, --lm-results LM_RESULTS
                        LM recovery results generated using hashcat --show

optional arguments:
  -O, --output-dir OUTPUT_DIR
                        Output directory (default: ntds-organiser)

Example:

    password-audit lm map \
        -N company.ntds \
        -P hashcat.potfile \
        -R lm-results.txt

If LM hashes are present within NTDS, organise identifies and extracts them:

 $ password-audit organise \
    -N example.ntds \
    -B bloodhound.zip

[*] Password Audit Organise

        NTDS Summary

| Object            | Value |
|-------------------|-------|
| Enabled Accounts  |   481 |
| Disabled Accounts |    42 |
| User Accounts     |   273 |
| Machine Accounts  |   208 |
| NTLM Hashes       |   164 |
| LM Hashes         |    88 |
| Domain Admins     |    23 |
| Company Words     |     3 |

[+] Output written to: ntds-organiser

These can be cracked as normal using the crack run command using Hashcat's LM mode (3000):

Info

For an example JSON file see Campaign Structure.

password-audit crack run \
    -C example-lm-config.json \
    -H ntds-organiser/lm-hashes.txt \
    -G example-lm-test

After cracking is complete, the recovered passwords must be mapped back to their users. This requires an extra step that is not yet integrated within password-audit:

Note

Mapped LM passwords may outnumber recovered LM hashes due to password reuse and LM hash structure.

# Write the LM dataset to a file
$ hashcat -m3000 \
    --show ntds-organiser/lm-hashes.txt \
    --potfile-path hashcat.potfile \
    > lm-results.txt

# Map recovered passwords back to their users
$ password-audit lm map \
    -N example.ntds \
    -P hashcat.potfile \
    -R ntds-organiser/lm-results.txt

      LM Password Mapping

| Object              | Value |
|---------------------|-------|
| Mapped LM Passwords |    15 |

[+] Output Directory: ntds-organiser

The generated dataset will contain the recovered passwords in uppercase form:

$ grep 'WELCOME123!' ntds-organiser/mapped-lm-passwords.txt
domain.local\mike:WELCOME123!

The LM dataset can now be analysed and integrated within the final report and/or used to generate password candidates if a Domain Admin exists within it.

Reporting¶

The LM dataset can be analysed to add LM-related findings to the final report (alongside the NTLM dataset):

$ password-audit analyse \
    -M ntds-organiser/mapped-ntlm-passwords.txt \
    -L ntds-organiser/mapped-lm-passwords.txt

[+] Report written to: report.md
[+] Findings written to: findings.json

The following LM findings are currently present:

LM hash exposure
Unique and duplicate LM hash analysis
LM password recovery statistics
LM Domain Administrator exposure

Generate¶

The LM dataset can be processed further using the generate module.

$ password-audit lm generate -h
usage: main.py lm generate [-h] -L MAPPED_LM_PASSWORDS [-D DOMAIN_ADMINS] [-O OUTPUT_DIR]

Identify recovered LM passwords belonging to Domain Administrators
and generate all possible password capitalisation variants.

options:
  -h, --help            show this help message and exit

required arguments:
  -L, --mapped-lm-passwords MAPPED_LM_PASSWORDS
                        Recovered LM passwords

optional arguments:
  -D, --domain-admins DOMAIN_ADMINS
                        Domain Admin account list (default: ./ntds-organiser/domain-admins.txt)
  -O, --output-dir OUTPUT_DIR
                        Output directory (default: ntds-organiser)

Example:

    password-audit lm generate \
        -L ntds-organiser/mapped-lm-passwords.txt

Because LM hashes do not preserve character casing, recovered passwords are presented in uppercase form and may not reflect the user's original password. The generate module identifies recovered LM passwords belonging to Domain Administrator accounts and generates all possible capitalisation variants, enabling recovery of the original password casing through password spraying:

Example

The recovered password WELCOME123! contains seven alphabetic characters, each of which can be either uppercase or lowercase. As a result, 2^7 = 128 possible capitalisation variants are generated, one of which represents the user's original password.

$ password-audit lm generate \
    -L ntds-organiser/mapped-lm-passwords.txt

  LM Candidate Generation

| Object           | Value |
|------------------|-------|
| LM DA Users      |     0 |
| LM DA Candidates |     0 |


[+] Output Directory: ntds-organiser

# Recovered LM passwords belonging to Domain Administrators
$ head lm-da-passwords.txt
domain.local\mike:WELCOME123!

# Generated capitalisation variants
$ head -n5 lm-da-candidates.txt
WELCOME123!
WELCOMe123!
WELCOmE123!
WELCoME123!
WELcOME123!

The lm generate command generates three files:

lm-da-users.txt containing Domain Administrator usernames
lm-da-passwords.txt containing recovered LM passwords belonging to Domain Administrators
lm-da-candidates.txt containing all generated capitalisation variants

The generated user and candidate datasets can then be used for password spraying (e.g. conpass) to determine the original password capitalisation:

conpass -d <domain> \
    -u <user> \
    -p <pass> \
    -U lm-da-users.txt \
    -P lm-da-candidates.txt \
    --dc-ip <dc-ip>

Why the Extra Step?¶

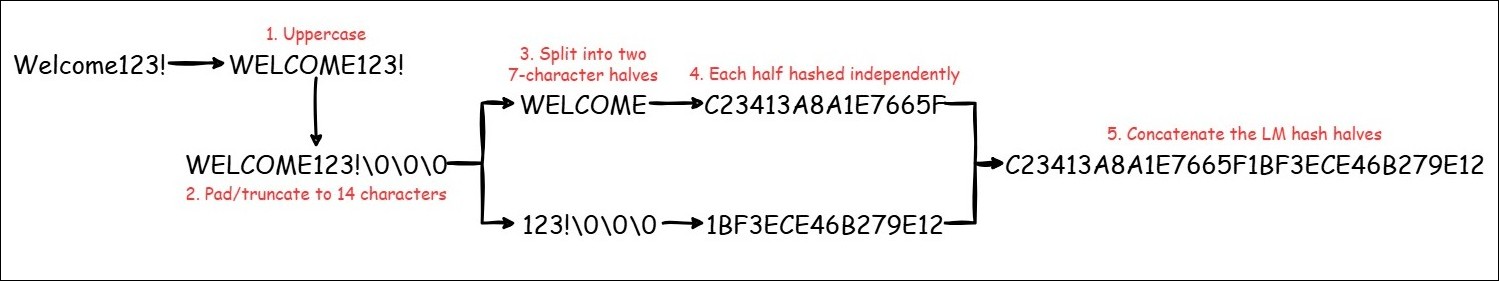

Unlike NTLM hashes, LM passwords are processed in two independent 7-character halves. Each half produces a separate LM hash value, resulting in a 32-character LM hash composed of two 16-character hash halves:

Hashcat stores recovered LM hash (16-character) halves in the potfile rather than the full 32-character values. Consequently, the potfile cannot be used directly to map recovered LM passwords back to user accounts:

# Full 32-character hash within the LM dataset
$ head -1 ntds-organiser/lm-hashes.txt
c23413a8a1e7665f1bf3ece46b279e12

# Stored halves within the potfile
$ grep 'c23413a8a1e7665f' hashcat.potfile
c23413a8a1e7665f:WELCOME
$ grep '1bf3ece46b279e12' hashcat.potfile
1bf3ece46b279e12:123!

As a result, an additional hashcat --show step is required to reconstruct the full LM hash and map recovered passwords back to user accounts:

Warning

Perform this step from Bash. PowerShell may modify the potfile encoding and affect LM password reconstruction.

# Validate that the full LM hash is shown
$ hashcat -m3000 \
    --show ntds-organiser/lm-hashes.txt \
    --potfile-path hashcat.potfile \
    | grep 'WELCOME'
c23413a8a1e7665f1bf3ece46b279e12:WELCOME123!
